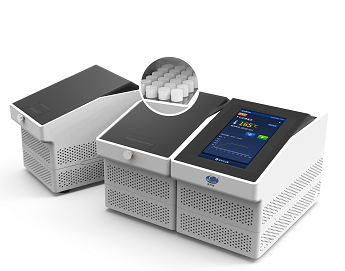

US-Series Intelligent Safe Reactor
The US-type safe intelligent digestion reactor adopts the independent unit design of the operation area and the digestion area, and the reactor provide up to 8 parallel digestion units, supporting each digestion unit to work independently and simultaneously.
※ Separated operation unit and digestion unit make the whole digestion process more safe and controllable.
※ Super plug-in rapid expansion function with 8 independent digestion units which suit for various digestion needs.
※ Built-in common digestion procedures, support multiple groups of user-defined digestion procedures
※ Variable frequency heating algorithm, precise temperature control.
|
Power Supply |
220 V/50 Hz |
|
Operating Conditions |
0 to 50 °C; 0 to 90% relative humidity (noncondensing) |
|
Range |
Room temperature to 195℃，Minimum resolution 0.1 ℃ |
|
Heating Rate |
25 to 150 ℃ in 10 minutes |
|
Temperature Indication Error |
±2℃ |
|
Temperature Field Uniformity |
Temperature difference on the same plane ≤ 2 ℃； |
|
Time Setting |
0 - 999minutes，Automatic Countdown |
|
Hole |
24*16mm vial holes, With hole marking, support expansion |
|
Digestion tube |
diameter 16mm, height 100mm or 160mm |
|
Display |
7” color touch screen |
